1.Overview

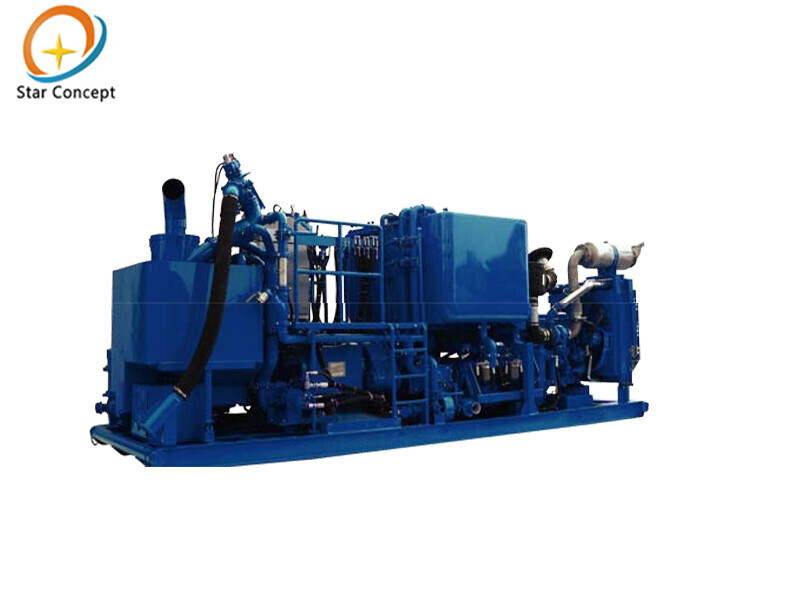

PCS-611A Auto density control single pump cementing skid is new generation of cementing unit with adoption of plunger pump

TPC600 and ACM auto mixing system.

The prominent features of extended TPC600 plunger pump are: based on the merits of TPB plunger pump, it makes packing replacement and maintenance easier and is ideal pump for single pump cementing unit.

2.General specification

Max. working Pressure: 44MPa(w/ 4 1/2” fluid end)

Max. Flow: 2.1m³/min (w/ 4 1/2" fluid end)

Density range: 1.3-2.5g/cm³

Auto control precision: ±0.02 g/cm³

Mixing capacity: 0.3-2.0m³/min

Working ambient temperature:-20°C~50°C

Overall dimension (mm): 6300(L)x2300(W) x3100(H)

Net weight: 12000kg

3.Features

• The skid adopts long TPC600 plunger pump which makes packing maintenance easier.

• The mixing power is supplied by independent power unit which increases the actual operation power of main engine.

• The power sources of slurry recirculating pump and triplex pump are independent, so slurry quality is not affected by the fluctua tion of trilex pump pressure or flow rate.

• Dedicated booster centrifugal pump makes recirculating system and booster system mutually independent, and thus avoid two systems influencing each other and improve the quality of mixing.

• High energy recirculating jet mixing system.

• Off-center dry cement valve avoids bulk from choking effectively

• Emergency kill system of air inlet shutoff.

• F300 Non-radioactive densitometer is easy to wash, safe and reliable.

• Simplify operation, adapt to working habits in oilfield.

• 10" operation screen, convenient to monitor the working data

• Portable wireless/ wired data acquisition system.
