Overview

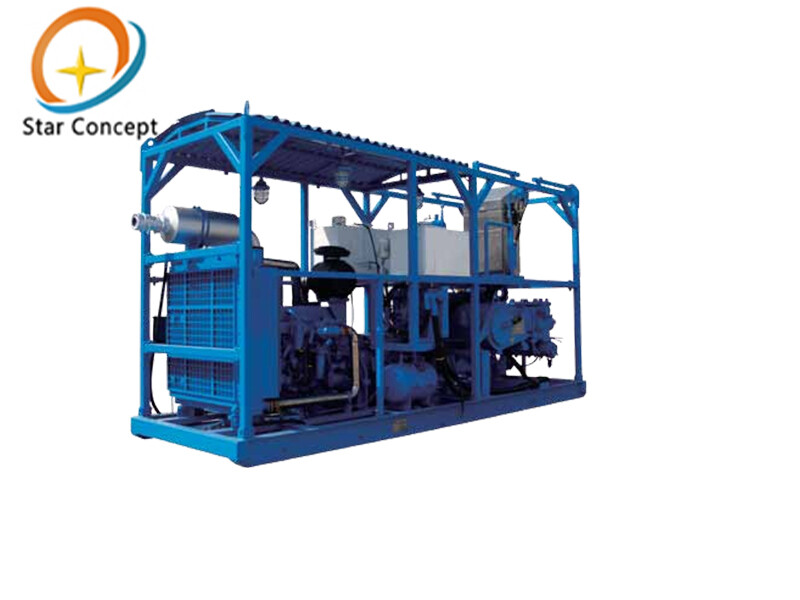

The model PSS-511B acidizing pump skid is developed for offshore acidizing services as well as for oilfeld cementing, fushing and fracturing services. It is of integral structure and all its components are installed inside the box-shape frame which is consisted of the skid base and the anti-collision skid frames.

The PSS-511B acidizing pump skid includes the following components: 1 ea engine, 1 ea transmission case, 1 ea triplex plunger pump, transmission shaft, plunger pump overpressure safety valve, discharge manifold, suction manifold, skid frame, instrument console and air circuit system, etc.

All the controls of the acidizing pump skid may be achieved inside the instrument console. The whole system works properly and reliable and the real tme and accurate monitoring readings can be expected.

Primary technical specification

Minimum working temperature:  -20 °C (-4 °F)

Maximum working temperature:  50 °C (122 °F)

Relatve humidity: 90%

Weight (dry): approx. 8.3 ton      Weight (wet): approx. 9.3 ton

Maximum working pressure: 76.2 Mpa (4-1/2” plunger)

Maximum displacement: 1.52 m³/min (4-1/2” plunger)

Overall dimension (mm): ≤5900 (L) × 2100 (W) × 3000 (H)

Configuration

Engine

Model: CAT C13 Engine

Rated HP: 475 HP/2100 RPM

Transmission

Model: ALLISON 4700 OFS (5 forward gears + neutral gear)

Triplex Plunger Pump

Model: TPH400 (reciprocating, horizontal, single actng)

Maximum input HP: 447 kw (600 BHP)

Stroke travel: 8” (203.2 mm)      Gear Rato: 8.6 : 1

Acid-proof Centrifugal Pump

Maximum working pressure: 0.3 MPa

Working displacement: 0.5-2.8 m³/min (The displacement may be adjusted in order to beter match the plunger pump)

Available Options

Engine

Model: Detroit Diesel S60    Rated Power: 475 HP/2100 RPM

Displacement Tank 20 BBL (3.2 m³)

Centrifugal Pump: Serva RA 56
