Overview

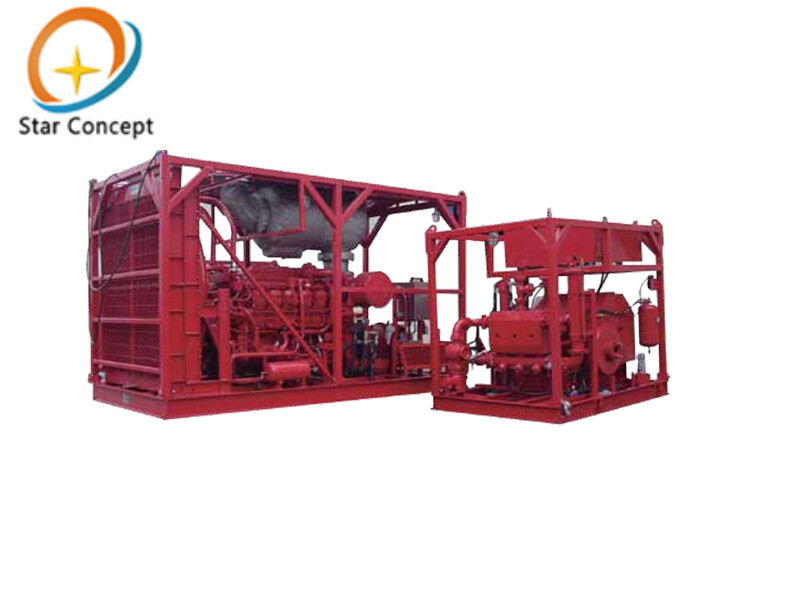

Model PGS2250-A sand control (fracturing) pump skid insists of the following major components and systems: skid frame, engine, transmission case, plunger pump, lubricaton system, air circuit system, hydraulic systems, high/low pressure manifolds, and electric circuit, control system, etc. The split-structured skid is made up of two parts, the power skid and the pump skid and each  module’s weight controlled within 15 tons.

Primary Technical specification

Rated output hydraulic horsepower: 2000 HP

Overall dimension (mm): ≤8000 (L) x 2600(W) x 3250(H)

Weight: ≤15 t

Standard Configuration

Engine

Option 1

Model: CAT 3512B diesel engine

Rated horsepower: 2250 BHP/1900 RPM

Option 2

Model: MTU/DDC 12V4000,T1237K39 electric diesel engine

Rated horsepower: 2250 BHP/1900 RPM

Transmission Case

Model: Allison s9820 hydraulicmechanical transmission caseMaximum input horsepower:1678 kw (2250 HP)

Maximum torque: 8271 Nm

Maximum rotation speed:

2100 RPM

Gear ratio

1=3.750:1 11=2.694:1 11=2.201:1IV=1.766:1

V=1.581:1 Vl=1.269:1 VI=1.000:1V1l=0.72:1(lockout)

Triplex plunger pump

Model: TPA2000 or SPM TWS 2250triplex plunger pump

Maximum output horsepower: 1490 kw (2000 HP)Stroke length: 8”

Gear ratio: 6.353:1
