1.Overview

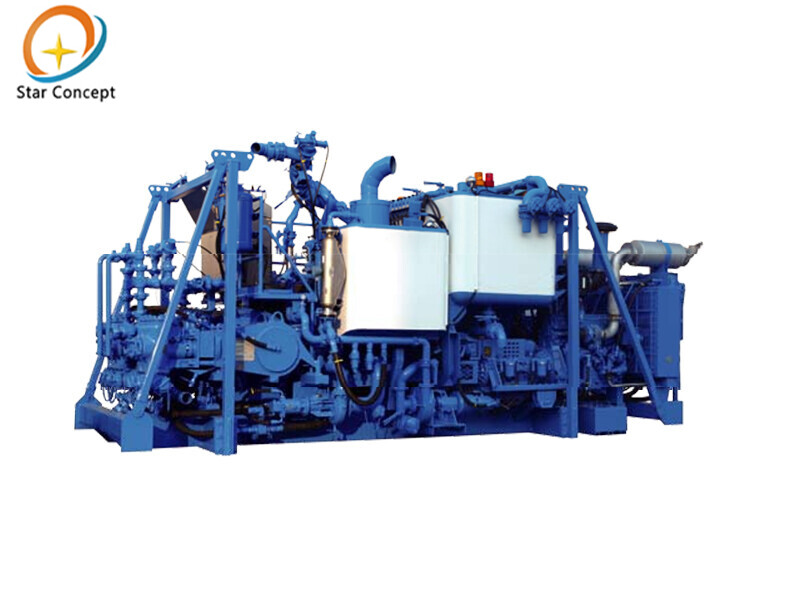

Model PCS-521B double pump cementing skid equipped with TPH400 pumps is new generation of cementing unit developed in recent years.

The input shaft of TPH400 pump is paralleled with centre line of engine, so the fluid end is at the rear of unit. This inline installation feature makes the maintenance and service of pumps easier.Compared with other cementing plunger pumps with same plunger size,TPH400 pump has features of maximum operation pressure, long stroke and high self-priming capacity.The high energy mixing system is powered by the transmissions PTOs. The skid is very compact, so it is applicable for the areas with strict requirements for space, such as offshore drilling platform,etc.

This unit is mainly utilized in cementing job, acidizing job, oil well pressure testing, and other fluid pumping job in ofshore, on land or desert oilfield.

2.Basic parameters

Max. working pressure: 14,000 PSi (w/ 4”Fluid End)

Max. flow: 3.04m3/min (w/ two 4 1/2" fluid ends)

Density range: 1.3-2.5g/cm3

Auto control precision: +/-0.02g/cm3

Mixing capacity: 0.3-2.3m3/min

Working ambient temperature:-20°c~50°C

Overall dimension (mm):7200(L)x2500 (W)x 3250 (H)

Net weight: 22000kg

3. Features

• High energy recirculating jet mixing system.

• Off-center dry cement valve avoids bulk from choking.

• Emergency kill system of air inlet shutoff.

• Plunger pump overpressure protection system.

• SPS non-leakage packing system.

• Emergency mixing system.

• F300 Non-radioactive densitometer is easy to wash, safe and reliable.

• Simplify operation, adapt to working habits in oilfield.

• 10"operation screen, convenient to monitor the working data.

• Portable wireless/ wired data acquisition system.

• Engine auxiliary cold start, pneumatic or hydraulic start available.

• Fan radiator or sea water heat exchanger is available.

• C7 auxiliary power unit is available.

• ZONE-ll Explosion-proof kit is available for application to hazardous areas.
