1.Overview

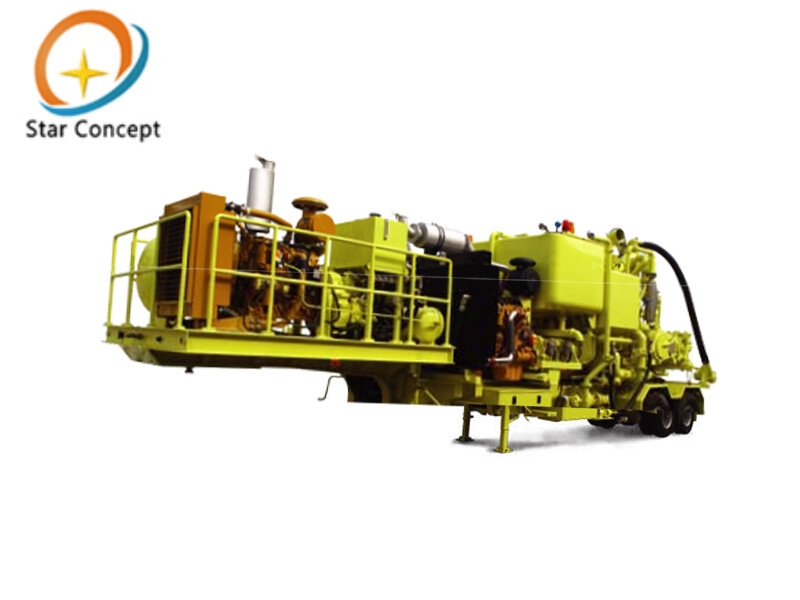

PCTLR-521A Double pump cementing trailer adopts TPH400 plunger pump as cementing pump.

The whole unit is mainly composed of semi-trailer chassis, two main engines, two transmissions, two TPH400 triplex pumps, C7power unit, hydraulic system, air system and ACM-IV. 1 auto mixing system.

The input shaft of TPH400 pump is paralleled with centre line of engine, so the fluid end is at the rear of unit. This inline installation feature makes the maintenance and service of pumps easier.Compared with other cementing plunger pumps with same plunger size, TPH400 pump has features of maximum operation pressure, long stroke and high self-priming capacity.

2.General specification

Max. working pressure: 14,000Psi (95.2 MPa, w/ 4" fluid end)

Max.flow:2.7 m³/min(w/ one 4" and one 4 1/2" Fluid End)

Density range: 1.3-2.5g/cm³

Auto control precision: ±0.02 g/cm³

Mixing capacity: 0.3-2.3m³/min

Working ambient temperature:-20°c~50°C

Overall dimension (mm):11240(L)x 2500(W) x4100 (H)

Net weight:28000kg

3.Features

• Domestic or imported trailer chassis, Low deck, Heavy duty, high temperature, desert type trailer chassis are available.

• TPH400 inline installation, makes the maintenance and service of pumps easier.

• Auxiliary C7 Power unit.

• High energy recirculating jet mixing system.

• Off-center dry cement valve avoids bulk from choking.

• Emergency kill system of air inlet shutoff.

• Plunger pump overpressure protection system.

• SPS non-leakage packing system.

• Plunger pump overpressure protection system, engine goes idle automatically, transmission is in neutral position.

• F300 Non-radioactive densitometer is easy to wash, safe and reliable.

• Simplify operation, adapt to working habits in oilfield.

• 10"operation screen, convenient to monitor the working data.

• Portable wireess/ wired data acquisition system.
