1.Overview

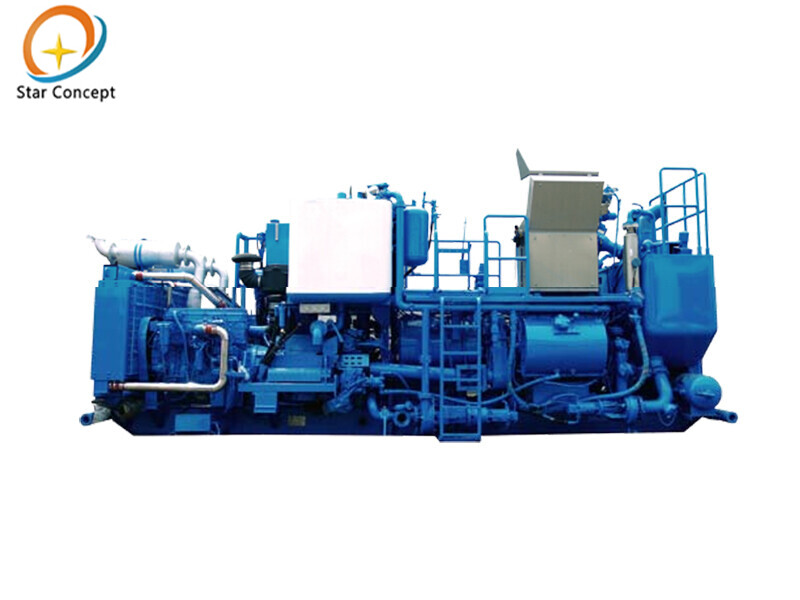

Model PCS-421B is an integral skid mounted mixing and pumping unit which is state-of-the-art in continuous mixing and density automatic control.

It mainly consists of skid frame, two engines, two transmissions, two TPA400 triplex pumps, hydraulic system, air system and ACM auto mixing system. The High energy mixing system is powered from two transmissions PTO. The entire skid is very compact and applicable for offshore drilling platform.

This unit is mainly utilized in cementing job, fracturing job, oil well pressure testing, and other fluid pumping job in offshore, on land or desert oil field.

2.Basic parameters

Max. working pressure: 69MPa (w/ 3 3/4" fluid end)

Max. flow: 3.28m³/min(w/two 5” fluid ends)

Density range: 1.3~2.5g/cm³

Auto control precision: ±0.02 g/cm³

Mixing capacity:0.3~2.3m³/min

Working temperature: -20℃ ~ 50℃

Overall dimension (mm): 7400(L) x2500(W) x3265(H)

Net weight: 20000kg

3.Features

• High energy recirculating jet mixing system.

• Off-center dry cement valve avoids bulk from choking.

• Emergency kill system of air inlet shutoff.

• Plunger pump overpressure protection system.

• SPS non-leakage packing system.

• Emergency mixing system.

• F300 Non-radioactive densitometer, easy to wash, safe and reliable.

• Simplify operation, adapt to working habits in oilfield.

• 10” operation screen, convenient to monitor the working data.

• Portable wireless/ wired data acquisition system.

• Engine auxiliary cold start, pneumatic or hydraulic start available.

• Fan radiator or sea water heat exchanger are available.

• C7 auxiliary power unit is available.

• ZONE-ll Explosion-proof kit is available for application to hazardous areas.
