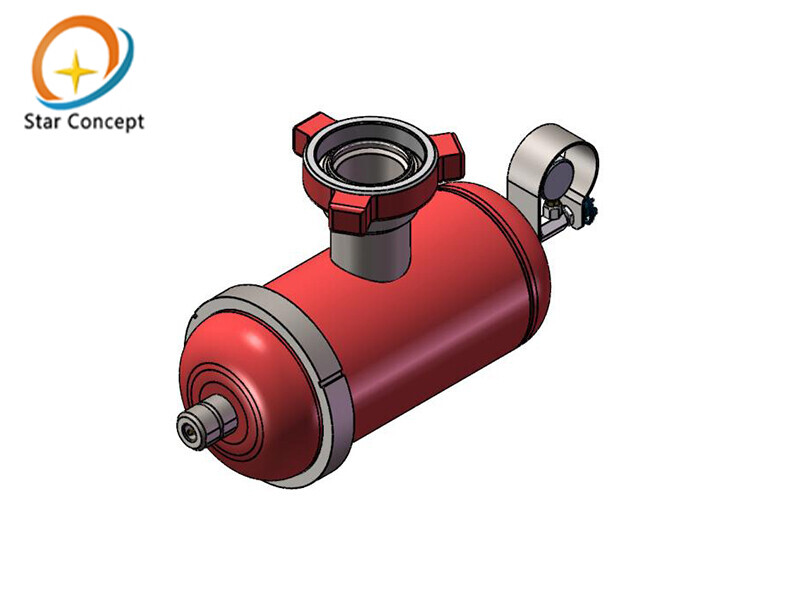

Suction Buffer is a special device specially designed for fracturing operation. lt is mainly used at the front end of the suction manifold of the fracturing pump to ensure the stability of the suction valve body when the fracturing pump is working.

The buffer uses gas to absorb the energy of fracturing fluid impact and release it gently to prolong the time of velocity change, so as to reduce the large impact of fracturing pump components and avoid collision damage, so as to ensure the stability of the suction valve body when the fracturing pump is working.

Product Feature

Feactures:

Model YH625-2

--Joint: 4" hammer union

--Volume: 625

--Air bag material: ethylene propylene rubber

--High temperature resistance: 100℃ optimum, 176 ℃ well-formed

--Maximum working pressure: 4.8Mpa

Model YH1350-2

--Joint:4"hammer union

--Volume:1350

--Air bag material: ethylene propylene rubber

--High temperature resistance: 100℃ optimum , 176℃ well-formed

--Maximum working pressure: 4.8Mpa
