HT400

Features

Summary: TH400 horizontal single-acting three-cylinder plunger pump is mainly composed of power end, reducer box and hydraulic end. The hydraulic end is forged with high quality alloy steel as a whole and precisely machined by machining center as a
Contact Us
-+
ADD to Quote

Product Details


Product Description

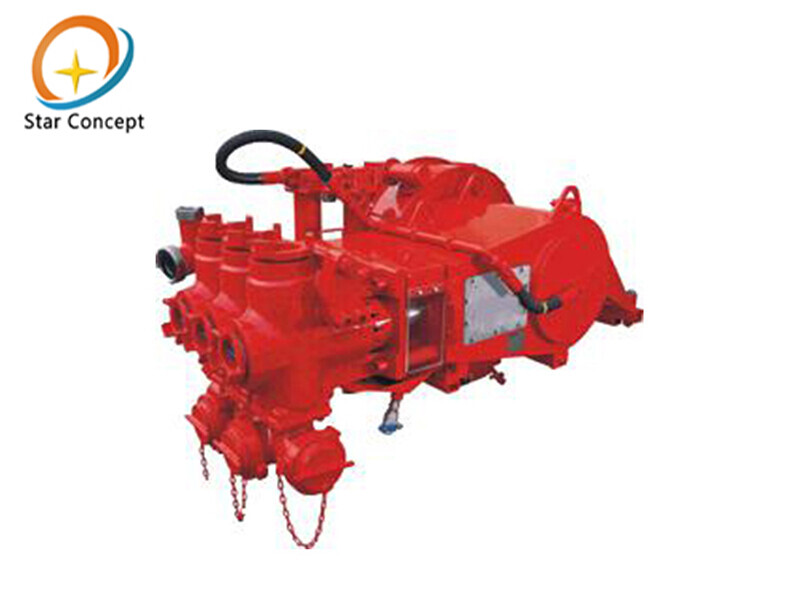

TH400 horizontal single-acting three-cylinder plunger pump is mainly composed of power end, reducer box and hydraulic end. The hydraulic end is forged with high quality alloy steel as a whole and precisely machined by machining center as a whole, which can be configured with various plunger sizes. The pump has the advantages of high power, high pressure, easy maintenance, etc. It is the plunger pump of choice for high pressure cementing. 4-1/2", 4", 3-3/8" plungers are available.
　　
Main Technical Parameters



Product ModelHT400
Max. Brake Power kW (BHP)600BHP(447Kw)
Max. Connecting Rod Torque（Nm)9782
Stroke (mm)203.2（8″）
Max. Stroke224rpm
Transmission Ratio8.6:1
Length×Width×Height (mm)1975X976X1156 mm
 Weight  kg（lbs）2910kg（6402）

　　


Main Performance Parameters


Pump Stroke (rpm)3270128171244
Plunger Diameter
Inch(mm)		Displacement GPM Pressure psi
(L/min) (MPa)		Displacement GPM Pressure psi
(L/min) (MPa)		Displacement GPM Pressure psi
(L/min) (MPa)		Displacement GPM Pressure psi
(L/min) (MPa)		Displacement GPM Pressure psi
(L/min) (MPa)
3-3/8"(85.7)30(104) 20000(138)65(245) 14314(99)119(450) 7789(54)159(601) 5832(40)227(860) 4078(28)
4"(101.6)42(158) 14000(97)91(344) 10190(70)167(632) 5545(38)223(844) 4152(29)319(1207) 2903(20)
4-1/2"(114.3)53(200) 11200(77)115(435) 8051(56)211(800) 4381(30)282(1068) 3280(23)404(1527) 2294(16)



Our Strength


Dongying Star Concept Petroleum Equipment Co.,ltd has many years of drilling equipment &cementing and fracturing equipment production &supply experience,is a professional company in oil,natural gas drilling& cementing equipment,construction machinery overhaul and other business.

The Company is equipped with five forging production lines (one of which is a robot automatic forging production line), with an annual production capacity of 30,000 tons of forgings.  The Company has over 200 sets of high-precision CNC machining equipment and six intelligent robot automated machining production lines;  The heat treatment equipment includes forklift-type heat treatment furnaces, mesh-belt heat treatment production lines, well-type heat treatment furnaces, high-frequency and intermediate frequency quench machining tools, with an annual heat treatment capacity of 16,000 tons.
