  • 5ZB-2500(1860)

›

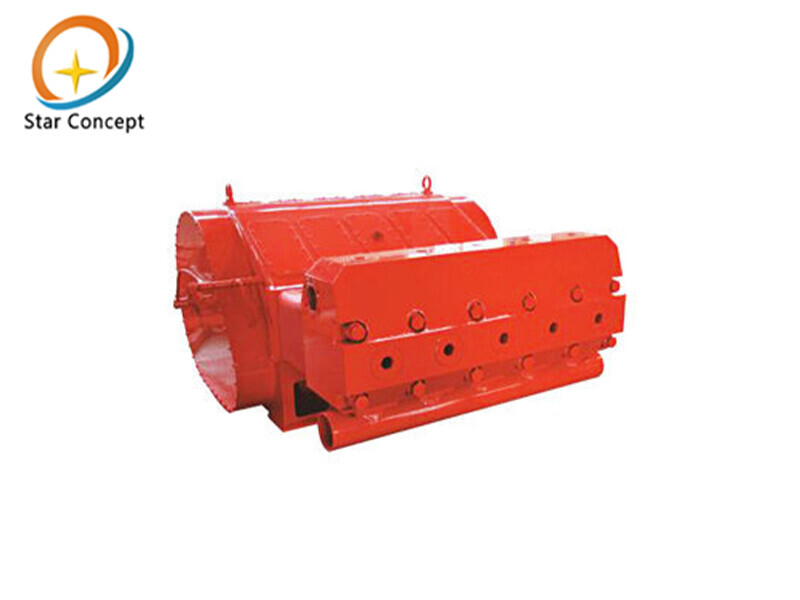

5ZB-2500(1860)

Features

Summary: 5ZB-2500 five-cylinder plunger pump is mainly used in fracturing, acidizing, cementing and sand control operations. It has the characteristics of large output power, high pressure and large displacement; the hydraulic end can choose a variety of plungers to meet the user's requirements for different pressures and displacements; the independent packing box is convenient to disassemble and easy to replace; the double helical gear vice transmission, the equipment is evenly stressed to improve the smooth operation of the large pump.

Contact Us
-+
ADD to Quote

Product Details


Product Description
　　
5ZB-2500 five-cylinder plunger pump is mainly used in fracturing, acidizing, cementing and sand control operations. It has the characteristics of large output power, high pressure and large displacement; the hydraulic end can choose a variety of plungers to meet the user's requirements for different pressures and displacements; the independent packing box is convenient to disassemble and easy to replace; the double helical gear vice transmission, the equipment is evenly stressed to improve the smooth operation of the large pump.
　　
Main Technical Parameters
　　
Maximum brake power: 2500hp (1866kW)
　　
Maximum load of connecting rod: 855kN(192325lbf)
　　
Stroke: 203.2mm(8")
　　
Max. stroke: 330rpm
　　
Transmission ratio: 6.353:1
　　
Dimension: 2199×1980×1113mm
　　
Length X width X height: (86.6"×78"×43.8")
　　
Weight: 6760kg(14903lbs)
　　
Main Performance Parameters


Operating Parameters

Pump stroke
r/min


115

150

200

250

330

Plunger Diameter

Displacement

Pressure

Displacement

Pressure

Displacement

Pressure

Displacement

Pressure

Displacement

Pressure

in(mm)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

3-3/4"(95.25)

802(212)

120(17420)

1086(287)

92.6(13437)

1446(382)

69.6(10096)

1809(478)

55.6(8068)

2385(630)

42.2(6121)

4"(101.6)

912(241)

105.6(15315)

1234(326)

81.6(11830)

1643(434)

61.2(8886)

2055(543)

49(7102)

2710(716)

37.1(5386)

4-1/2"(114.3)

1154(305)

83.4(12100)

1563(413)

64.3(9338)

2082(550)

48.3(7012)

2604(688)

38.6(5605)

3437(908)

29.2(4247)

5"(127)

1427(377)

67.5(9800)

1930(510)

52.1(7562)

2574(680)

39.1(5671)

3217(850)

31.3(4537)

4247(1122)

23.7(3437)
